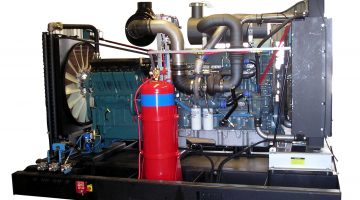

3610 Coupled Engine Compressor – MTU Detroit Diesel 60 V8
Model 3610 uses the V8 booster block coupled to a powerful MTU V8 drive engine. When the job calls for very high volume and high pressure – This one unit can replace 2 or smaller boosters. All of our boosters a fully customisable to meet certain needs and requirements.
Standard features
- Canopy clad mounted to base assembly – fork lifted
- On board fuel tank
- Booster bypass manifold (Single Stage)
- Two-way concentric valves
- Automatic scrubber tank drain valve
- Overspeed shutdown valve
- Inlet particle filter
- Water cooled booster block
- Pre-cooler bypass system
- Dual inlet suction manifold
- Discharge temperature sensor
- Pre-cooler (40°C) & suction scrubber tank
- Aftercooler (100°C) max operating temperature
- Low pressure switch at booster inlet
- 24 volt DC starting and operating system
- Suction and discharge safety relief valves
- Full function instrument panel monitoring all pressures, temperatures and controls with full protection shutdown and fault indicators.
Optional features
- Choice of drive engine
- Digital control panel (Booster)
- Open frame configuration
- Top Lift feature
- Extreme cold weather start kit
- Achievement of exit temperature bogies
- Spark arrestor
- Trailer mounted unit
- Lights for night operation
- Engine speed adjustment
- Insulation package to canopy
- Service packs 250/500/1000/2000 hours
- Valve and piston kits
- Other options, pressures, capacities:
available on request - Container and rig safe models as well as other options, capacities and pressures available – consult factory.
Technical Specifications
| Booster type | 8 cylinders, reciprocating |
| Configuration | COUPLED |
| Model | ARC 3610 8V92 |
| Drive engine | MTU DETROIT 60V |
| Power | 550 bhp @ 1800 rpm |
| Booster stages | 1 |
| Max suction pressure (psi / bar) | 350 / 24 |
| Max discharge pressure (psi / bar) | 1000 / 69 |
| Capacity at maximum suction pressure (cfm / m3/min / I/sec) | 3600 / 102 / 1699 |
| Booster oil capacity (gal / I) | 6.6 / 25 |
| Engine oil capacity (gal / I) | 9.5 / 36 |
| Fuel tank capacity (gal / I) | 185 / 700 |
| Max operating ambient temp. (°F / °C) | 125 / 52 |
| Wet weight (lb / kg) - (approximate) | 11464 / 5200 |
| Overall dimensions, L x W x H (in / mm) | 11'6" x 6'11" x 8'4" / 3500 x 2100 x 2540 |
| Suction connection | 50mm ( 2”) BSP |
| Discharge connection | 50mm ( 2”) BSP |
